HENRY BALL VALVE WITH SIGHT GLASS 5/8

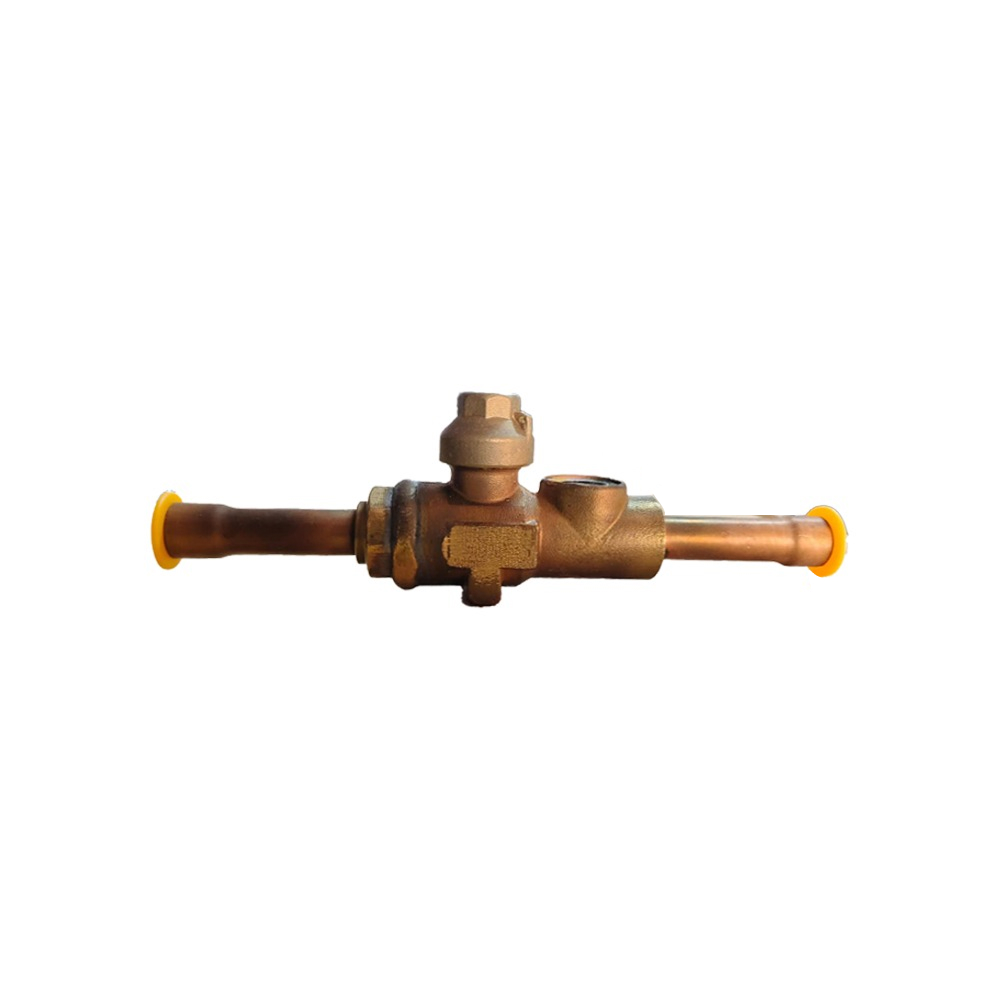

HENRY BALL VALVE WITH SIGHT GLASS 5/8″ 907205 SG

Ball valves are used in a wide variety of air conditioning and refrigeration applications. They can be used for both liquid and gas applications. This type of valve is commonly used for isolating purposes. All valves are suitable for CO2, HCFC and HFC refrigerants along with their associated oils. Additionally, standard models up to and including 3 1/8 and 76mm sizes are suitable for R290 and A2L gases compatible with the valve materials.

The BVSG combines the traditional ball valve with a sight glass and moisture indicator. A typical location for this combination product is in the liquid refrigerant line. The ball valve is used for isolating purposes, the sight glass for a visual display inside the line and the moisture indicator monitors the moisture content in the system.

The HPBV is suitable for transcritical CO2 applications.

Category: Brand:

Description

Main Features
Construction Features
•Bi-directional flow
•Indicator on stem shows valve position – open or closed
• Positive stem stop ensures precise positioning in the open or
closed position
•Blow-out proof stem
•Ball cavity vented to prevent over-pressure
•Vented seal cap
•Schrader valve option
•Mounting pad
•Large clear sight glass (BVSG only)
•Positive colour contrast indicator (BVSG only)
•Plastic protection cap for sight glass supplied as standard
(BVSG only)
•UL Listed (standard range 907 and 937 models only – excludes
BVSG)

Sealing integrity features
•Premium quality PTFE ball seals
•Premium quality TFMTM ball seals (HPBV only)
•Double O-ring stem seal design
•Premium quality neoprene stem O-ring seals (not HPBV)
•Premium quality HNBR stem O-ring seals (HPBV)
•Seal cap reainer – prevents loss of cap
•PTFE cap seal – acts as a secondary seal
•Hermetically sealed sight glass (BVSG only)

Technical Specification
Allowable operating temperature = -40oC to +120oC
Allowable operating temperature = -40oC to +150oC (HPBV)
Allowable operating pressure = 0 to 48 barg / 60 barg depending on model
Allowable operating pressure = 0 to 130 barg (HPBV)

Materials of Construction
The valve body, valve body adaptor, ball and seal cap are made from brass. The stem is made from plated steel. The pipe extensions are made from copper/K65 copper alloy. The ball seals are made from virgin PTFE/TFM, stem O-rings from neoprene/HNBR and cap seal from PTFE.
