Description

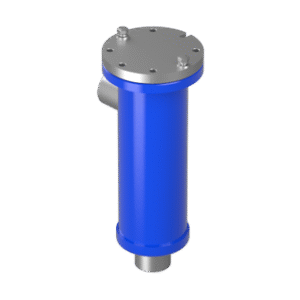

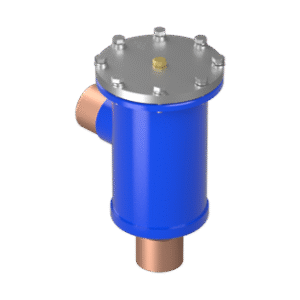

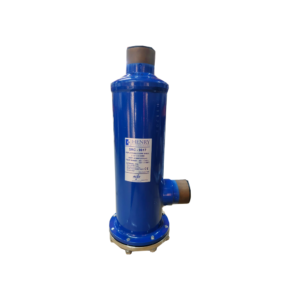

The Henry Group range of Replaceable Core Filter Driers are designed to be used in both the liquid and suction lines of refrigeration and air conditioning systems. The product range is suitable for use with HCFC, HFC and CO2 refrigerants (see core data). In addition, all units up to and including 3-core models are also suitable for use with A2L & HC refrigerants.
Main Features
• Proven System Protector
• High filtering capability
• High moisture absorption and acid removal
• Stainless steel mesh screen
• Solid copper full flow connections
• Interchangeable cores
• Corrosion-resistant, powder coated shells
• 1/4 NPT pressure tapping
• Nickel plated steel cover plate
• 1000 hour salt spray tested to ASTM B117

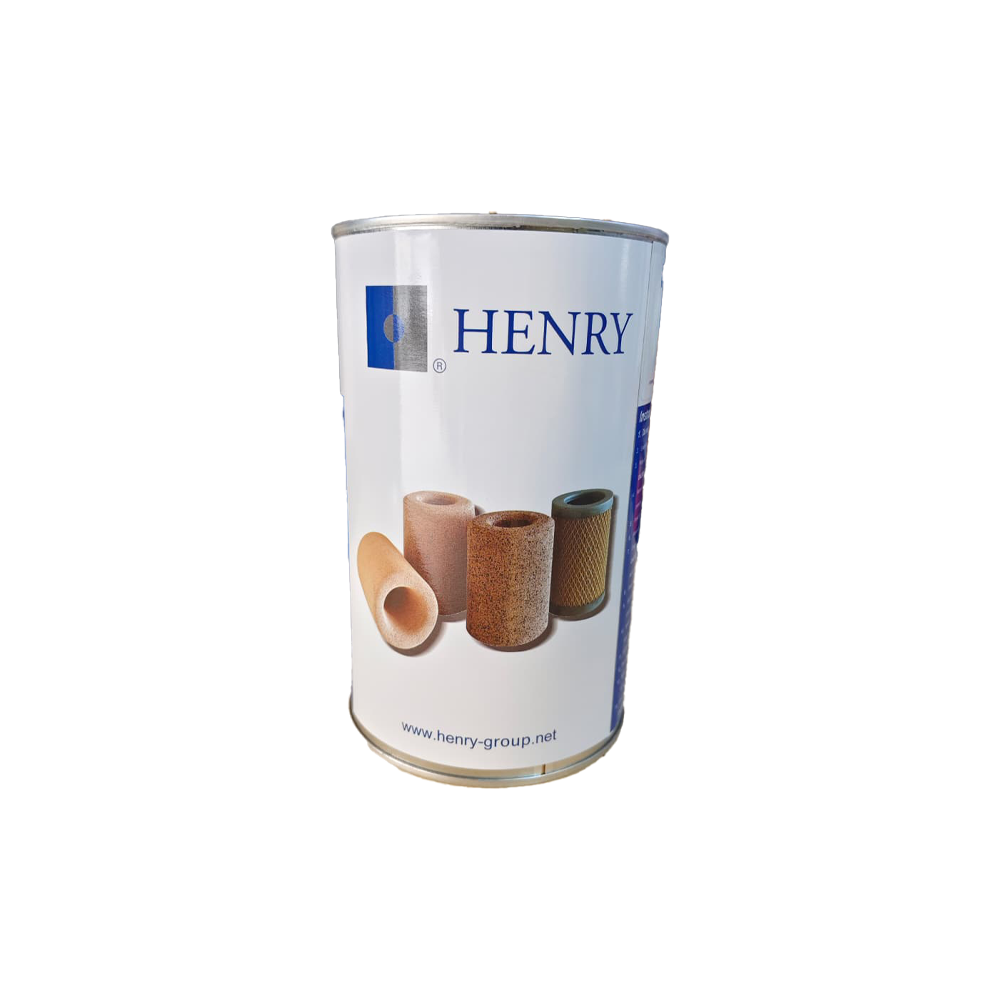

S-848-C
• 80% molecular sieve and 20% activated alumina
• Absorbs moisture and acid in the system
• Suitable for HCFC, HFC, A2L and CO2
refrigerants
• Not suitable for oils containing additives
Materials of Construction
Drier Shells:
The main shell and fixed end cap are constructed from carbon
steel and are powder coated for corrosion resistance. The
cover plate is constructed from nickel plated steel. The ODS
connections are copper.
Cores:
Each core is constructed from a moulded composite of desiccant material(s) bonded to provide very high mechanical strength, micronic filtration, high moisture absorption and acid removal where applicable. Each core is fully activated and placed in a hermetically sealed container
