Description

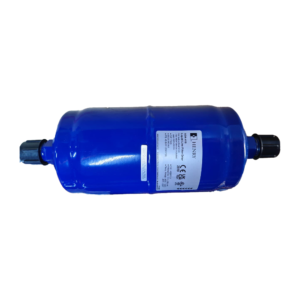

Sealed Filter Driers are designed to protect refrigeration and air-conditioning systems by removing moisture, acids and solid particles. Sealed Filter Driers are for use in the liquid line of the system. The range is suitable for use with HCFC, HFC, CO2, R290 and A2L gases
How It Works
The function of a filter drier is to remove system contaminants, acid and moisture.
Main Features
• Available with solid copper solder or steel flare
connections
• Solid core for drying/acid removal
• Filter pad and mesh to remove solid particles
• 1000 hour salt spray tested to ASTM B117
Materials of Construction
The shell is construed from carbon steel and powder coated for corrosion resistance. Connections are available as either copper ODS or steel flare type. Each core is constructed from a moulded composite of desiccant materials bonded to provide very high mechanical strength, micronic filtration and high moisture absorption. The “A” core also provides acid removal.
Note: Type “A” cores are not recommended for use with oils containing additives.
