  • Brand : Max Germany
  • Model : 335-N7
  • Handle Design: High-leverage handle arms wrapped in a blue and black ergonomic non-slip grip to optimize squeezing force.
  • Safety Lock: Outfitted with a heavy-duty swing-lock latch mechanism providing fast, one-handed locking and unlocking deployment.
  • Physical Profile: Total tool length of 170mm weighing roughly 190 grams (0.190 kg) for a lightweight, compact footprint in your tool pouch.
Category: Brand:

Description

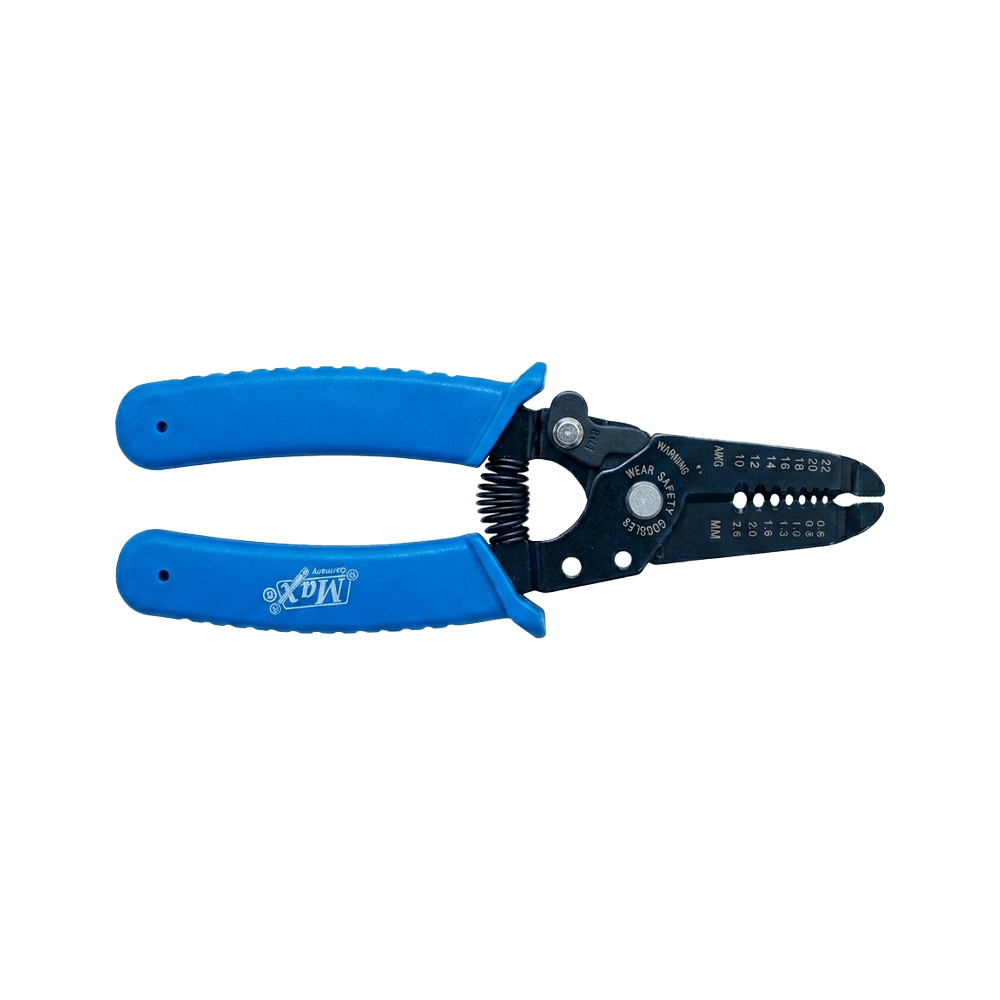

The MAX Germany 7-in-1 Wire Stripper and Plier (Model: 335-N7) is a heavy-duty, multifunctional electrical installation hand tool. It is engineered to replace multiple standalone tools by packing stripping, cutting, crimping, and reaming functions into a single 170mm chassis.

The 7 Core Operational Functions

The tool earns its “7-in-1” designation by integrating the following technical capabilities:

  1. Wire Stripper: Precision-ground stripping nests handling wire capacities from 0.6mm to 2.6mm.
  2. Wire Cutter: Curved, laser-hardened cutting edges designed for clean shear cuts through copper and aluminium conductors.
  3. Wide Jaw Pliers: Serrated knurled tips at the nose optimized for securely grabbing, pulling, and twisting solid electrical wires.
  4. Terminal Crimper: Dedicated crimper zone built into the throat to crimp both insulated and non-insulated electrical terminals.
  5. Conduit Reamer: Head geometry engineered to easily deburr and ream out sharp edges on 1/2-inch to 1-inch electrical metallic tubing (EMT) conduits.
  6. Bolt Cutter: Built-in threaded shear holes that cleanly size down standard #6 and #8 bolts without ruining the thread pattern.
  7. Loop Maker: Integrated bending holes on the outer jaw profiles to form perfect, uniform wire loops for terminal screw placements.
